S20-M 10kV Three Phase Oil Distribution Transformer
所属分类：
Product Center
Power Transformer
Oil-immersed Transformer Series
库存剩余
隐藏域元素占位
- Description
-
- Commodity name: S20-M 10kV Three Phase Oil Distribution Transformer
- Commodity ID: S20-M 10kV Three Phase Oil Distr

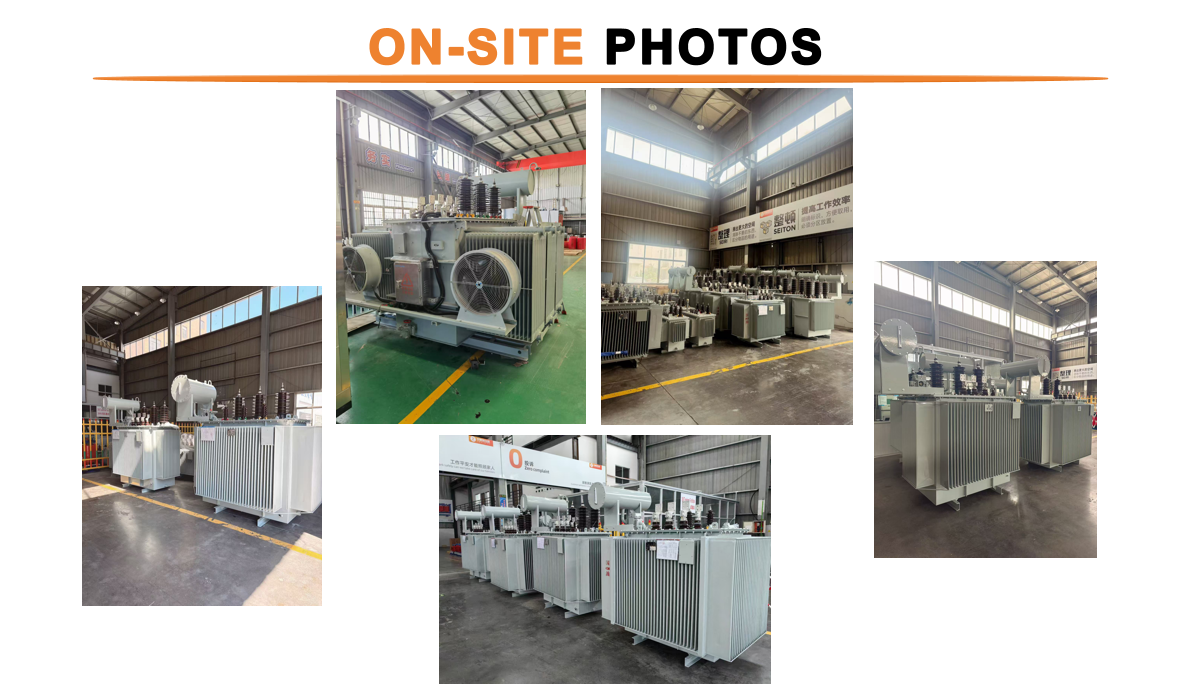

Summary
The three-phase oil-immersed distributing transformer applies new type insulating structure and makes short-circuit resistance strong. The iron core is made of high-quality cold-rolled silicon-steel plate. High-voltage winding group is made up of high-quality oxygen-free copper lines and it adopts multilayered drum type structure. All fasteners have been processed with special treatment to prevent them from loosening.
As high tech product that promoted by the country, the product has many advantages such as high efficiency, low loss. Its social remarkable that it will save much of electricity consumption and operating cost.Product Description
Working conditions
The use conditions are according to IEC60076.Altitude is not over 1000m. Ambient temperature: highest temperature +40 C ;highest monthly average temperature+30 C.lowest temperature-25 C;highest yearly temperature: +30°C.
The wave curve of the power voltage is approximately sine wave. The voltage of three phase transformer should be approximately symmetrical.
SpecificationGrade S20-M Series Electric Transformer
Products standard :
GB1094.1-5 GB/T6451-2015
Tapping range of high-voltage :
±5% or ±2×2.5%
Core :
Core-type Transformer
Rated high-voltage :
11, 10.5, 10, 6.3, 6kV
Insulating level :
LI75AC35/LI0AC5
Winding Type :
Two-winding Transformer
Rated low-voltage :
0.4kV
Frequency,
Frequency Characteristics :
50Hz,
Power Frequency
Usage :
Power Transformer, Distribution Transformer
Connection group :
Dyn 11 or Yyn0
Winding :
Aluminium
Shape of Core :
Ring
Rated
capacity
(KVA)Voltage combination and tapping range Lable of
connecting
groupNo-Load
loss
(W)Load
loss
(W)No-Load
current
(%)Impedance
Voltage
(%)High-
Voltage
(kV)High voltage
tapping range
(%)Low-
Voltage
(kV)30 6
6.3
10
10.5
11±5±2×2.5 0.4 Dyn11 70 710 1.6 4 50 90 1000 1.4 80 120 1380 1.3 100 130 1570 1.2 125 150 1850 1.1 160 170 2130 1.1 200 200 2530 1.0 250 230 2760 1.0 315 280 3470 0.9 6 400 310 3990 0.8 500 360 4880 0.8 630 420 5880 0.7 630 410 5960 0.7 800 480 6960 0.7 1000 550 6130 0.6 1250 650 9690 0.6 1600 760 11730 0.6 2000 1000 14450 0.5 2500 1200 17170 0.5 1600 760 12960 0.6 8 2000 1000 15960 0.5 2500 1200 18890 0.5
