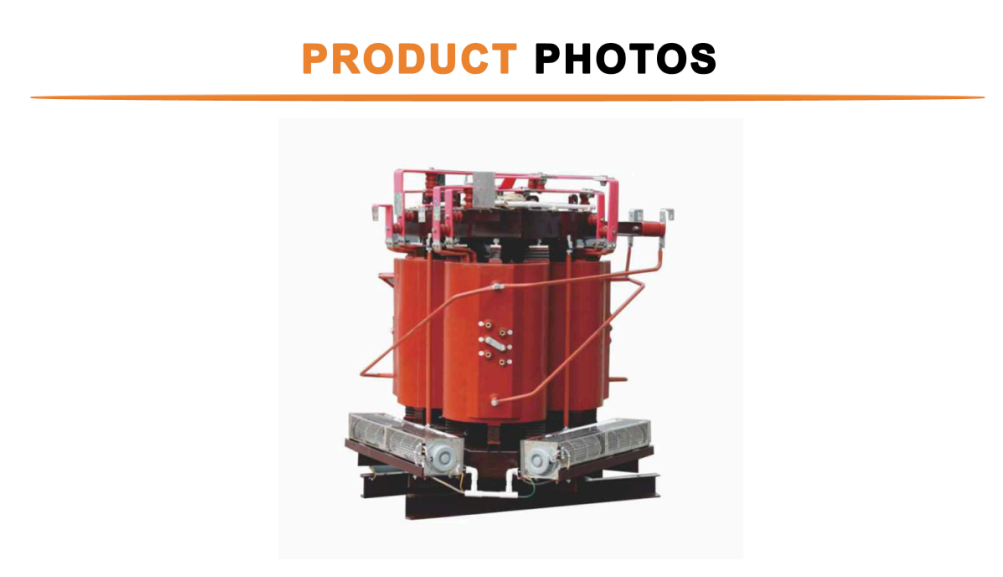

SCB-RL Triangular Wound Core Dry-type Transformer
所属分类：
Product Center
Power Transformer
Dry-type Transformer Series
库存剩余
隐藏域元素占位
- Description
-
- Commodity name: SCB-RL Triangular Wound Core Dry-type Transformer
- Commodity ID: SCB-RL Triangular Wound Core Dry
Summary
The triangular wound core dry-type transformer adopts the three-dimensional triangular wound core core components.
After assembly and annealing, the three-phase magnetic circuit is completely symmetrical, the magnetic resistance is greatly reduced, and the excitation current and no-load loss are significantly reduced.
In addition to the advantages of conventional dry-type transformers, such as safety and strong overload capacity, triangular wound iron core dry-type transformers also have environmental protection, no-load loss, small excitation current, low noise, moisture-proof, anti-corrosion, strong short-circuit resistance, and impact resistance. Features such as good over-voltage performance.
The main performance indicators of the products are better than domestic standards. It is most suitable for use in environments with high fire protection requirements. It is suitable for high-rise residential buildings, airports, stations, docks, subways, hospitals, power plants, metallurgical industries, shopping centers, densely populated areas, petrochemicals, nuclear power plants, nuclear submarines and other places.
Product Description
Specification
Rated
capacity
(KVA)Lable of
connecting
groupImpedance
Voltage
(%)Voltage combination and tapping range
(kV)No-Load
loss
(W)Load
loss
( W)No-Load
current
(%)High-
Voltage
(kV)High voltage
tapping range
(%)Low-
Voltage
(kV)100 Dyn11
Yyn04.0 6
6.3
10
10.5
11±5±2x2.5 0.4 400 1370 0.6 125 470 1620 0.6 160 540 1860 0.6 200 620 2210 0.5 250 720 2410 0.5 315 880 3030 0.5 400 980 3480 0.4 500 1160 4260 0.4 630 6.0 1300 5200 0.3 800 1520 6080 0.3 1000 1770 7100 0.3 1250 2090 8460 0.25 1600 2450 10240 0.25 2000 3050 12620 0.2 2500 3600 14990 0.2
