SCB10 SCB13 Dry-type Distribution Transformer

SCB10, SCB13 series dry-type distributing transformer whose winding is sealed up with epoxy, flame-retardant, explosion-proof, free from maintenance and pollution, and it is compacted and can go deep into load center, Besides, it has advantages of low partial discharge capacity, low noise, good heat dispersion and it can run over a long time

with 125% rated load in the circumstance of cold wind. It applies intelligent thermal

controller and has the functions that it will alarm when there is fault or the temperature is exceeded and switch off as well as the function of "black box". It can be

monitored and controlled by connecting it to the computer through its RS485 serial

interface. it is used in the places such as hotel, restaurant, airport, power plant, hospital, skyscraper, shopping center, and residential areas and other adverse environments like

subways, smelt and power plant, ship, offshore drilling platform, etc.

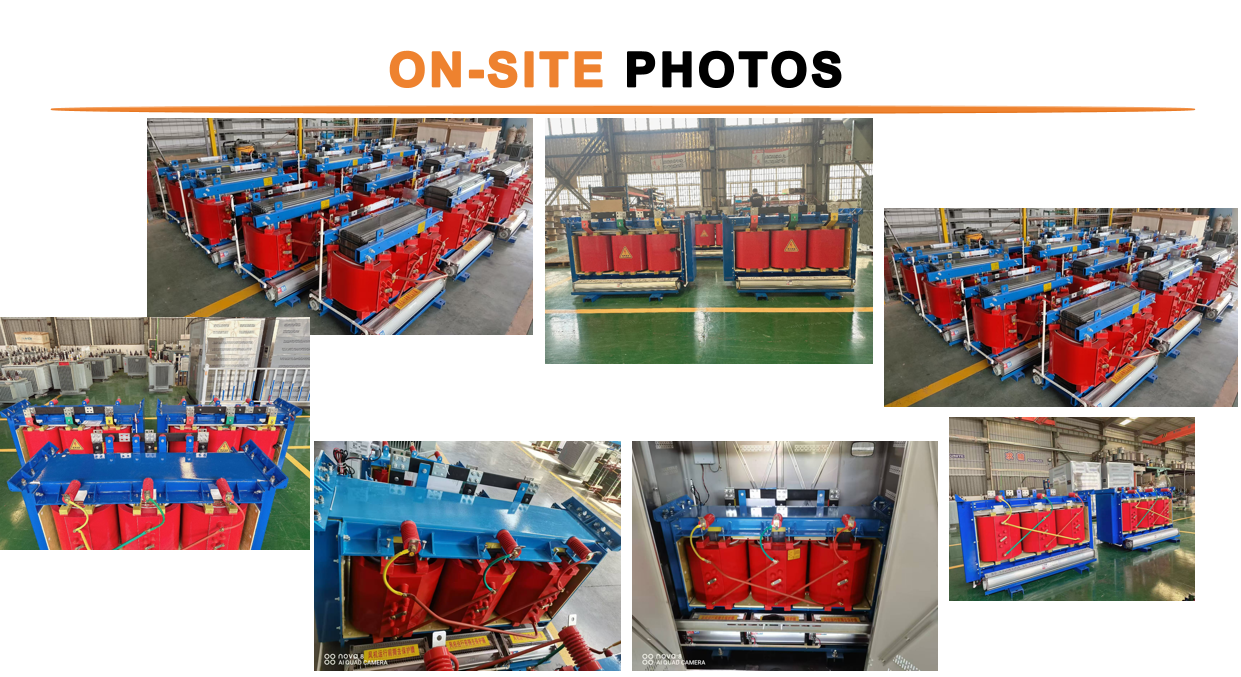

Product Description

Product Features

Reduce the encapsulation layer resin thickness, enhanced coil cooling capacity. Coil with glass fiber reinforced mesh plate to enhance and enhance the mechanical strength of

the coil; improve the product against sudden short-circuit ability, the coil will never

crack;Coil using vacuum casting process, which greatly reduces the coil partial discharge, improve the coil electrical strength; Explosion-proof overload capacity, thermal shock stability, low noise; With temperature control and air cooling device, the three-phase temperature with the screen display, automatic start and stop fans, fault alarm, over-temperature alarm, over-temperature trip and black gate function, and through the RS485 serial communication interface with the computer connection, Monitoring and control.

Specification

Products standard : GB/T 10228-2015, GB20052-2020	Tapping range of high-voltage : ±5% or ±2×2.5%	Core : Core-type Transformer	Enclosure : IP20/IP23
Rated high-voltage : 10(11, 10.5, 6.6, 6.3, 6)kV	Insulating level : LI75AC35/LI0AC5	Winding Type : Two-winding Transformer	Winding : Cooper/Aluminium
Rated low-voltage : 0.4kV	Frequency : 50Hz	Usage : Single-phase Transformer, Combined Transformer, Power Transformer, Distribution Transformer	Frequency Characteristics : , High Frequency
Connection group : Dyn11 or Yyn0	Winding :Cooper/Aluminium	Shape of Core : U	Capacity : 30-2500kVA

Transformer model				SC(B)13		SC(B)14		SC(B)18		No-Load current (%)	Noise dB
Rated capacity	Short circuit Impedance	High- Voltage	Low- Voltage	No-load Dissipation	Load Dissipation	No-load Dissipation	Load Dissipation	No-load Dissipation	Load Dissipation
kVA	%	%	kV	W	155℃(F) (120℃)	W	155℃(F) (120℃)	W	155℃(F) (120℃)
30	4%	±2×2.5%	0.4	135	640	130	640	105	640	2	61/49
50				195	900	185	900	155	900	2	61/49
80				265	1240	250	1240	210	1240	1.8	63/50
100				290	1415	270	1415	230	1415	1.5	63/50
125				340	1665	320	1665	270	1665	1.4	64/51
160				385	1915	365	1915	310	1915	1.3	64/51
200				445	2275	420	2275	360	2275	1.1	65/52
250				515	2485	490	2485	415	2485	1.05	65/52
315				635	3125	600	3125	510	3125	1	68/54
400				705	3590	665	3590	570	3590	1	68/54
500				835	4390	790	4390	670	4390	1	68/55
630				965	5290	910	5290	775	5290	0.85	69/56
630	6%			935	5365	885	5365	750	5365	0.85	69/56
800				1090	6265	1035	6265	875	6265	0.85	70/56
1000				1270	7315	1205	7315	1020	7315	0.85	70/56
1250				1500	8720	1420	8720	1205	8720	0.85	72/58
1600				1760	10555	1665	10555	1415	10555	0.85	73/59
2000				2190	13005	2075	13005	1760	13005	0.7	75/60
2500				2590	15445	2450	15445	2080	15445	0.6	76/61
