Single Phase Pad-mounted Transformer
所属分类：
Product Center
Power Transformer
Pad-mounted Transformer
库存剩余
隐藏域元素占位
- Description
-
- Commodity name: Single Phase Pad-mounted Transformer
- Commodity ID: Single Phase Pad-mounted Transfo
Summary
Our single phase pad-mounted distribution transformer is commonly used in various places including rural areas, remote regions and scattered villages to provide high quality power supply for daily lighting, agricultural production and industrial plants. Aside from these, it is also suitable for the energy saving projects for railway and urban grid.
Product Description

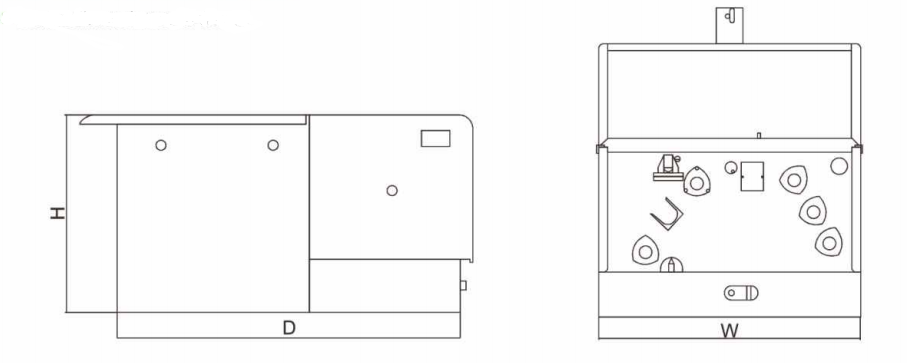

Outline Dimensions And Weight
Standards
IEEE & ANSI C57 12.00, IEEE IEEE & ANSI C57 12.38, & ANSI C57 12.90
Product Feature
Liquid-filled
Dead front
Separable, insulated, high-voltage connectors, radial or loop feed
Standard or customer specific rating with a range of 10-167kVA
Unita-high efficiency transformers
Extended additional warranty
Fuse Protection
SpecificationkVA Width Depth Length Approx weight(kgs) 10 900 840 610 335 15 900 840 610 347 25 900 840 610 358 37.5 900 840 610 369 50 900 840 610 423 75 900 940 610 488 100 900 990 760 554 167 970 1020 760 795 250 1000 1020 880 985
