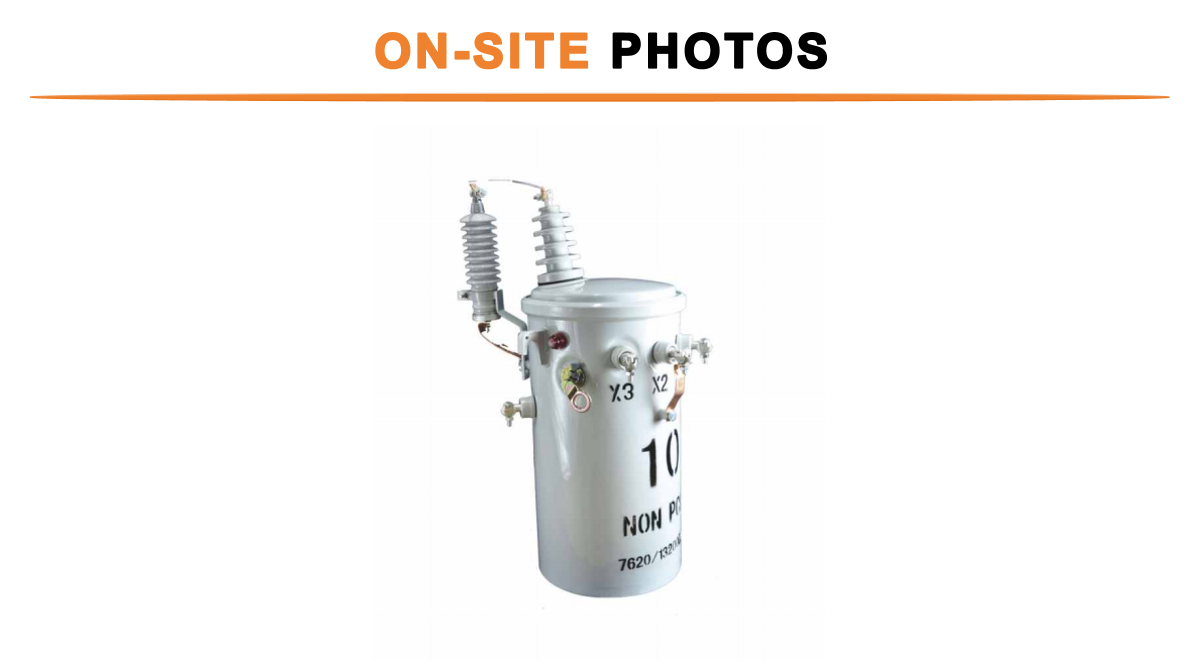

Our completely self-protected distribution transformer is used to offer electricity to facilitate lighting system, agricultural production and industrial factory in rural places, remote areas and scattered villages, and it is also applicable for pole-mounted distribution lines for railways and urban power grids. It equipped with HJ international csp breaker with load signal lamp.

Product Description

Huakun

Standards

IEEE & ANSI C57 12.00, IEEE IEEE & ANSI C57 12.20, & ANSI C57 12.90

Product Range

kVA :	10 through 500	Polarity:	Additive or subtractive
Temperature rise:	65°C	Primary voltage:	2400V through 34500GrdY/19920V
Cooling type:	ONAN	Secondary voltage:	120/240V,240/480V, 139/277V,600V
Single phase-Hert:	60&50	Taps:	±2×2.5% HV side

Specification

> CSP Series with C.R.G.O wound Core
Model	Rated Capacity (kVA)	Primary rating (V)	Tapping Range (%)	Secondary Rating (V)	Loss(W)
Model	Rated Capacity (kVA)	Primary rating (V)	Tapping Range (%)	Secondary Rating (V)	No load loss	Load loss
CSP-10	10	34500/19920 33000/17321 20000/11547 13200/7620 11000/6350 or others	±2x2.5% Or others	120-240 240-480 250-500 or others	50	120
CSP-15	15				65	195
CSP-25	25				105	290
CSP-37.5	37.5				140	360
CSP-50	50				180	500
CSP-75	75				250	650
CSP-100	100				275	850
CSP-167	167				455	1410
Note:The above parameter is only subject to our standard design,special requirement can be customized *For those capacity above 50kVA tank with cooling radiator
