Advanced Static Var Generator ASVG50/70/100/150KVAR

Production Description
HKK-ASVG advanced static var generator can detect the load current in real time through the external current transformer(CT), extract the reactive content and harmonic component in the load current through the internal DSP computing, finally calculate the instruction value to control the PWM signal generator to send the control signal to the internal lGBT, and generate the reactive compensation current and harmonic compensation current through the inverter to meet the requirements, so as to achieve the purpose of reactive compensation and harmonic control.
1.Reactive compensation products that take into account harmonic compensation
Main compensation capacitive and inductive reactive
Support low-time(3,5,7,9,11)small-capacity(rated capacity 50) harmonic compensation
2.Safe and excellent reactive compensation effect
HKK-ASVG realizes real-time dynamic stepless adjustment with overcompensation and under compensation
HKK-ASVG is a controllable current active device, which avoids the phenomenon of resonance in mechanism without generating harmonics, without amplifying harmonics and simultaneously filtering out 11 times or less odd harmonics.

Product model and meaning

Technical parameters

Standard type	400V				400V	480V	690V
	35kvar	50kvar	75kvar	100kvar	150kvar	90kvar	120kvar
System parameters
Rated input wire voltage	380V(-15%～+20%)				380V(-20%～+20%)	480V(-20%～+20%)	690V(-30%～+15%)
Grid frequency	50/60Hz(range:45Hz～63Hz)
Number of parallel machines	1～10sets
Oyerall efficiency	≥97%				≥98%
Grid structure	Three-phase three-wire/three-phase four-wire				Three-phase three-wire
Current transformer	150/5～10000/5
Circuit topology	Tri-level
Performance index
Rated capacity	35kyar	50kyar	75kyar	100kyar	150kyar	90kvar	120kyar
Reactive compensation	Support
Harmonic compensation range	Support low-time harmonic compensation(3,5,7,9,11)
Reactive compensation tange	From-1 to 1.capacitive and inductive continuity is adjustable
Response time	<15ms				<20ms
Cooling mode	ntelligent air cooling
Noise index	<56dB				<65dB
Communication monitoring ability
Communication interface	Rs485,internet access
Communication protocol	Modbus Protocol,General Electric Protocol,TCP/IP
Fault alarm	Yes,up to 256 alarm records
Monitoring mode	Support centralized monitoring and independent monitoring
Mechanical characteristic
Fixed mode	Rack type,wall-mounted type				Rack type
ncoming line mode	Rack-type back-incoming line,wall-mounted up-incoming line				Back-incoming line
Color	National Standard 7035-Light Grey(Customizable)
Environmental requirements
Altitude	<1500m, according to the rated capacity; between 1500m and 5000m, according to national standard CB/T 3859.2. for every 100m increase, the rated capacity is reduced by 1%
Operating temperature	-25～40℃
Relative humidity	5%～95%,no condensation
Grade of protection	IP20

Working principle
HKK-ASVG advanced static var generator can detect the load current in real time through the external current transformer(CT), extract the reactive content and harmonic component in the load current through the internal DSP computing, finally calculate the instruction value to control the PWM signal generator to send the control signal to the internal 1GBT, and generate the rea ctive
compensation current and harmonic compensation curent through the inverter to meet the reouirements, so as to achieve the purpose of reactive compensation and harmonic control

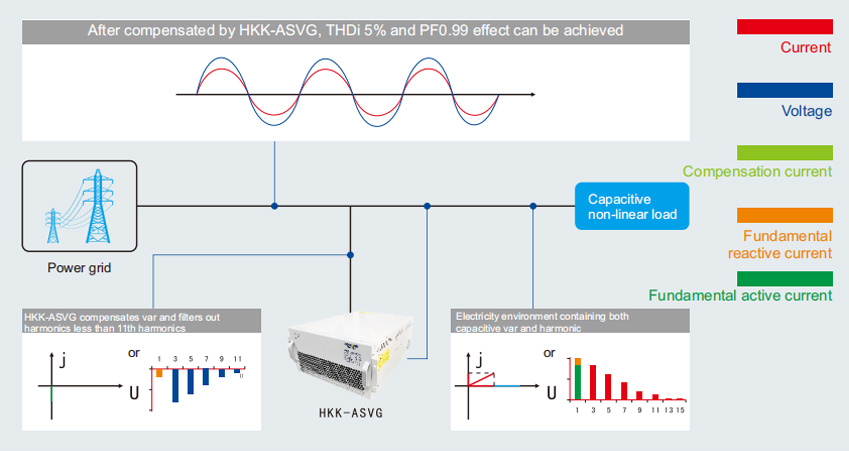

1.HKK-ASVG compensation for capacitive var and harmonics

2. HKKA-SVG compensation for inductive var and harmonics

keyword：

Static Var Generator /SVG

Reactive Power Compensation

Improve Power Factor
