HKKKCS series silicon controlled switches

所属分类：

Switch Series

Product Center

Thyristor Switch

Summary
This type of product is an electronic power device which can quickly switch the power parallel capacitor. lts electrical structure is mainly composed of high-power reverse parallel thyristor module, isolation device, triggel circuit. svnchronous circuit, protection circuit and driving appliance. t is also eguipped with a terminal to control the growth of conduction or cut-off, and control the logic voltage of 0V cut-off) and 12V (conduction), The switch has the characteristics of simple installation, convenient maintenance, fast response, no inrush current, stable and reliable working noiseless field and open phase protection, lt is an idea device for switching capacitor in reactive power dynamic compensation device.

E-mail：

Tel/Wechat/Whatsapp:

Quantity

库存剩余

加入购物车

立即购买

隐藏域元素占位

对比

编号 :

0010

Description

- Commodity name: HKKKCS series silicon controlled switches
- Commodity ID: 0010
<strong>Summary</strong> <br> This type of product is an electronic power device which can quickly switch the power parallel capacitor. lts electrical structure is mainly composed of high-power reverse parallel thyristor module, isolation device, triggel circuit. svnchronous circuit, protection circuit and driving appliance. t is also eguipped with a terminal to control the growth of conduction or cut-off, and control the logic voltage of 0V cut-off) and 12V (conduction), The switch has the characteristics of simple installation, convenient maintenance, fast response, no inrush current, stable and reliable working noiseless field and open phase protection, lt is an idea device for switching capacitor in reactive power dynamic compensation device.

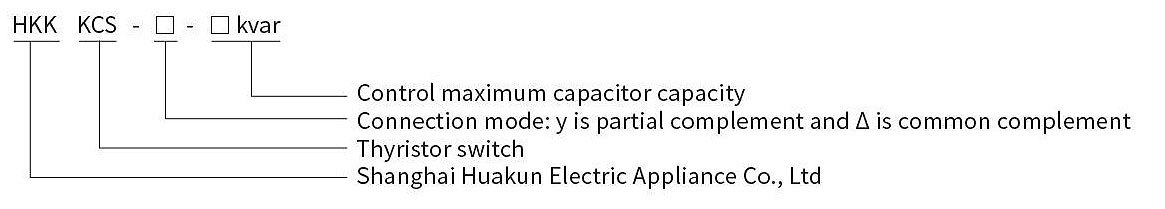

Model meaning

Working conditions
1. Ambient air temperature:- 25 ℃~+ 50 ℃ , and the average temperature within 24 hours is not higher than + 30℃;
2. When the temperature is +25 ℃ , the relative humidity is less than or equal to 90%;
3. The altitude should not exceed 2000m;
4. The air in the installation site is clean, and there is no explosion and combustible dangerous goods,no gas that can damage theinsulation and corrosion, and there is no conductive dust and serious mold;
5. There is no obvious out of limit harmonic content in the installation site.

Main technical parameters
1. Rated voltage: 380V(220 V), 50 Hz;
2. The service life is more than 1 million times
3. Switch action response time≤ 20ms
4. The time interval of reclosing after the switch is opened shall be no less than 200ms5.Switch withstand voltage ≥ 2000V;
6. Control voltage 5~24VDC, input current ≤ 10 Ma;7.Control capacity: type A: 1-40kvar; type B: 40-60kvar

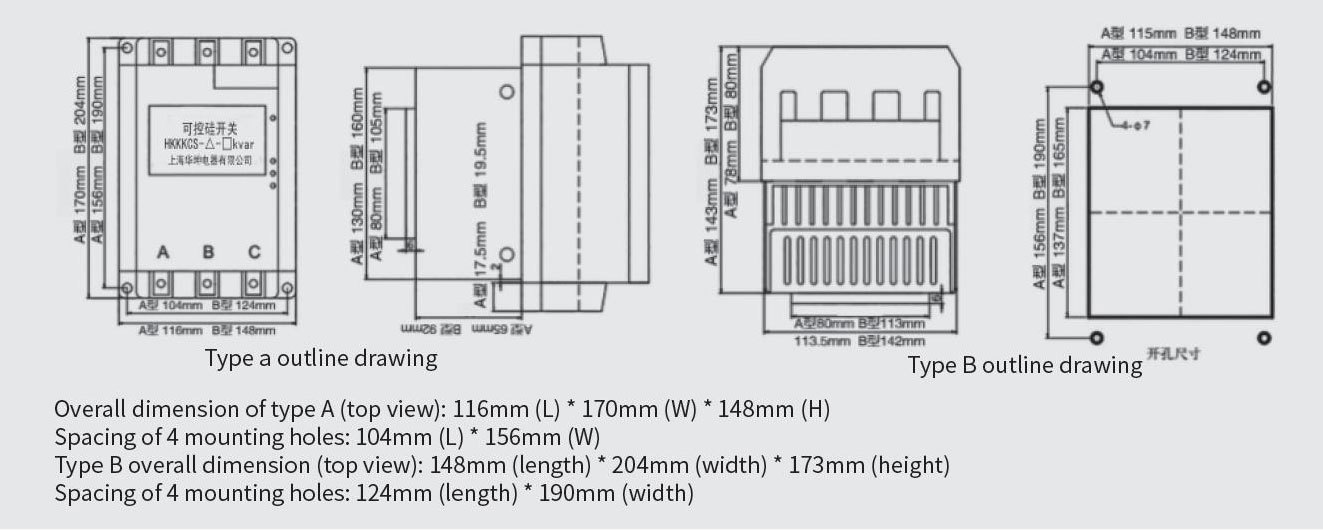

Installation dimensions

Wiring schematic diagram
