Low Voltage Reactor

所属分类：

Power Capacitor & Reactor Series

Reactor

Summary
Capacitor at the time of the inductive reactive power compensation, often by harmonic current, voltage switchinginrush current and operation process, the influence of the damaged capacitance and power factor is reduced, this need inthe front-end reactor with series capacitor, capacitor to restrain and absorb harmonic, protection, to avoid the harmoniccurrent and voltage impulse voltage current impact, improve power quality, improve system power factor to extend theservice life of the capacitor.

E-mail：

Tel/Wechat/Whatsapp:

Quantity

库存剩余

加入购物车

立即购买

隐藏域元素占位

对比

编号 :

004

Description

Commodity name: Low Voltage Reactor
Commodity ID: 004

<strong>Summary</strong> <br> Capacitor at the time of the inductive reactive power compensation, often by harmonic current, voltage switchinginrush current and operation process, the influence of the damaged capacitance and power factor is reduced, this need inthe front-end reactor with series capacitor, capacitor to restrain and absorb harmonic, protection, to avoid the harmoniccurrent and voltage impulse voltage current impact, improve power quality, improve system power factor to extend theservice life of the capacitor.

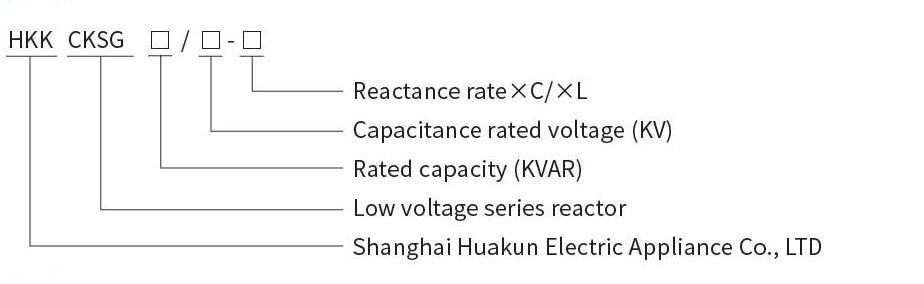

Types of meaning

Service environmental conditions

1.Altitude is not more than 2000 meters;
2.Operating environment temperature from-25°C to +45°℃ , relative humidity not exceeding 90%;3.There is no harmful gas or inflammable and explosive articles around;
4.The surrounding environment should have good ventilation conditions.lf installed in the cabinet,ventilation equipmentshould be installed.

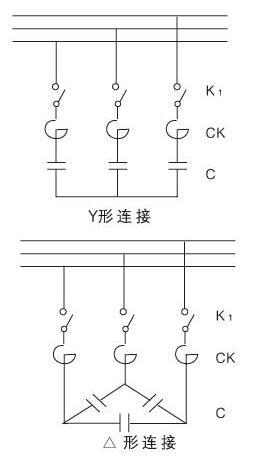

Product structure characteristics and connection mode

1.The filter reactor is divided into three phaseand single phase, both of which are core dry type.
2.The iron core is made of high-quality cold-rolled orientedsilicon steel with low loss. The corecolumn is divided into uniform segments with multiple air gaps and the air gap is ring-shaped
The oxygen laminated glass cloth plate is used forspacing, and special adhesiveis used to ensurethat the reactance air gap does not change during operation.
3.The coil is made of H-class or C-class enameledflat copper wire, arranged closely and evenly.
4.The coil and iron core of the reactor are assembled into a whole, and theprocess of pre-drying →vacuum prepainting →hot drying and curing is adoptedGrade H impregnated paint makes the reactor coil and iron core firmly together.
5.The clamps and fasteners of the reactor are made of nonmagnetic materials to ensure that thereactor has a high quality factorGood filtering effect;
6.The exposed parts are treated with corrosion prevention, and the leadout terminals are tinnedcopper tube terminals.

The performance parameters

1.Suitable for 0.4KV,0.45KV,0.48KV,0.525KV,0.66KV,0.69KV,1.14KV;
2.Types of reactance: 1%,4.5%,5.6%,6%, 7%,12%, 13%,14%;
3.Voltage withstand grade: 3KV/min, insulation grade: B,F,H, noise ≤50dB, overload capacity ≤1.35 times;

Model and Dimensions(three-phase)

Type of reactor	Matching capacito capacity (KVAR	Reactor capacity KVAR)	Inductance (mH)	Insulation class	Length X Width X height (mm	nstallation size (mm)
HKKCKSG-0.35/0.45-7	5	0.35	3×7.76	F、H	155×110×195	80×65-10
HKKCKSG-0.7/0.45-7	10	0.7	3×3.88	F、H	155×145×160	80×85-10
HKKCKSG-1.05/0.45-7	15	1.05	3×2.59	F、H	190×145×175	80×85-10
HKKCKSG-1.4/0.45-7	20	1.4	3×1.93	F、H	190×155×175	80×95-10
HKKCKSG-1.75/0.45-7	25	1.75	3×1.55	F、H	225×150×205	120×85-12
HKKCKSG-2.1/0.45-7	30	2.1	3×1.29	F、H	225×160×205	120×95-12
HKKCKSG-2.45/0.45-7	35	2.45	3×1.1	F、H	225×165×205	120×95-12
HKKCKSG-2.8/0.45-7	40	2.8	3×0.97	F、H	225×170×205	120×105-12
HKKCKSG-3.15/0.45-7	45	3.15	3×0.86	F、H	225×180×205	120×115-12
HKKCKSG-3.5/0.45-7	50	3.5	3×0.78	F、H	260×170×240	135×105-12

There are also various voltage classes such as 0.4kV,0.48kV,0.525kV,0.66kV,0.69kV,1.14kV
The reactance rates are 1%,5%,6%,7%,12%,14% and ldon't have enough space to list them all
The customer notifies the voltage grade,reactance and capacitance at the time of ordering.

Model and Size (single phase)

Type of reactor	Matching capacito capacity (KVAR	Reactor capacity KVAR)	Inductance (mH)	Insulation class	Length X Width X height (mm	nstallation size (mm)
HKKCKSG-0.35/0.45-7	5	0.35	3×7.76	F、H	155×110×195	80×65-10
HKKCKSG-0.7/0.45-7	10	0.7	3×3.88	F、H	155×145×160	80×85-10
HKKCKSG-1.05/0.45-7	15	1.05	3×2.59	F、H	190×145×175	80×85-10
HKKCKSG-1.4/0.45-7	20	1.4	3×1.93	F、H	190×155×175	80×95-10
HKKCKSG-1.75/0.45-7	25	1.75	3×1.55	F、H	225×150×205	120×85-12
HKKCKSG-2.1/0.45-7	30	2.1	3×1.29	F、H	225×160×205	120×95-12
HKKCKSG-2.45/0.45-7	35	2.45	3×1.1	F、H	225×165×205	120×95-12
HKKCKSG-2.8/0.45-7	40	2.8	3×0.97	F、H	225×170×205	120×105-12
HKKCKSG-3.15/0.45-7	45	3.15	3×0.86	F、H	225×180×205	120×115-12
HKKCKSG-3.5/0.45-7	50	3.5	3×0.78	F、H	260×170×240	135×105-12

Ordering instructions
Product modelRated current
Rated voltage (grid voltage)
Reactance rate (×C/×L)
Rated inductance
lnsulation class
Otherspecial requirements may be specified separately in the agreement
